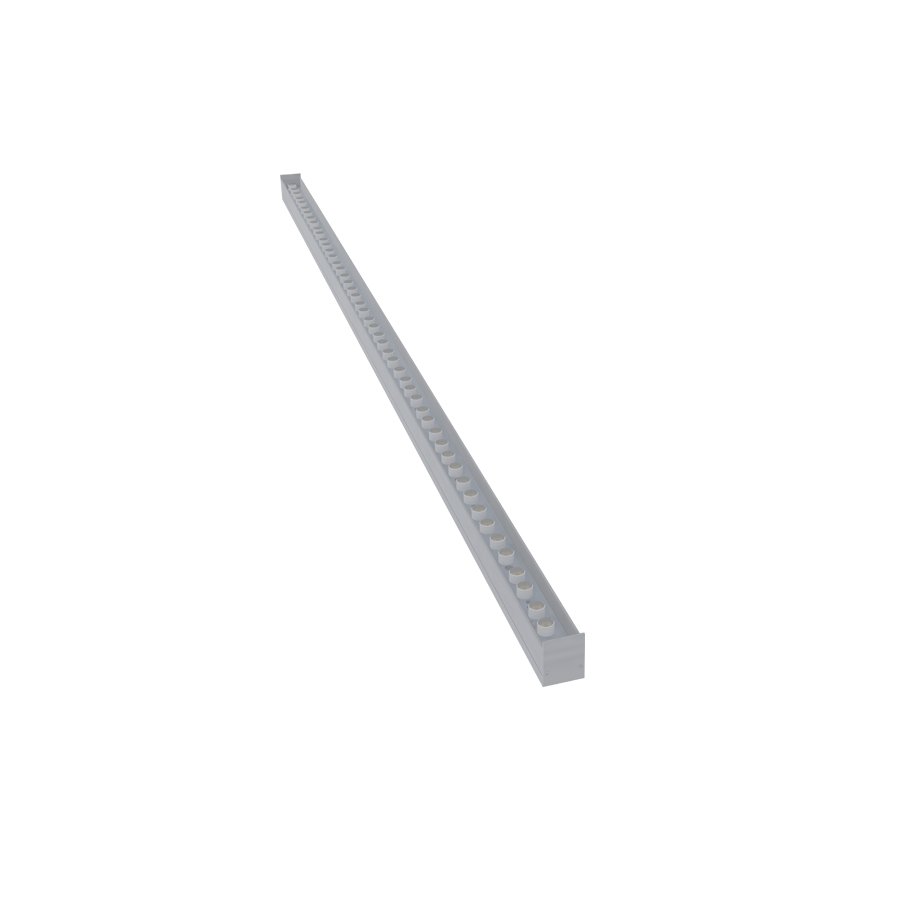

SATIN LINE SQ With optic lens
Product Description
SATIN LINE is a linear LED fixture for facades and creative installations. Continuous interconnection with IP67 connectors Mounting bracket made of Stainless steel.
Aluminium extruded body and polyurethane based epoxy covering the electronics inside the luminaire so that the luminaire meets IP67 enclosure ratings Satin Line pixel can be fully customized in terms of leghts to match every installations types and measurements.
Installation
LED Linear Strip ledbar fixture Aluminum extruded body UV protected High homogenous light diffusion with high-quality diffuser Aluminum mounting brackets Production in different lengths IP68 Connectors ENEC Standarts
Connection
Silicon Cable 30cm- 3x1.5 mm2
Design
LED Linear Type Surface Mounted Facade Lighting
Lenses
Lenses
Light distribution
Specification
Versions
Documents

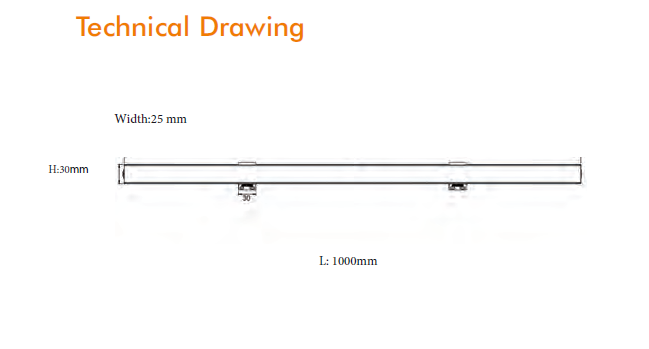

Technical Drawings
Specification
İnput Voltage:
24 V
IP Rate:
67
Impact Resistance:
09
CCT:
3000, 4000, 6500 K
Beam Angle:
Asymmetrical, Direct, Medium beam, Narrow beam, Wide beam
Control:
DALI, DMX
