ARES SURFACE
Product Description
Aluminum injection body,
UV protected diffuser,
Opal Polystyren/PMMA (Fire-Proof) /
Microprismatic(3D) Diffuser Types,
Constant current LED driver,
Electrostatic powder coating paint,
Optional body colors, ENEC Standards
Installation
Connection
3X0,75 mm2 CABLE
Design
Reflector
Opal Polikarbon PMMA Diffuser
Light distribution
DIRECT BEAM ANGLE
Versions
Documents

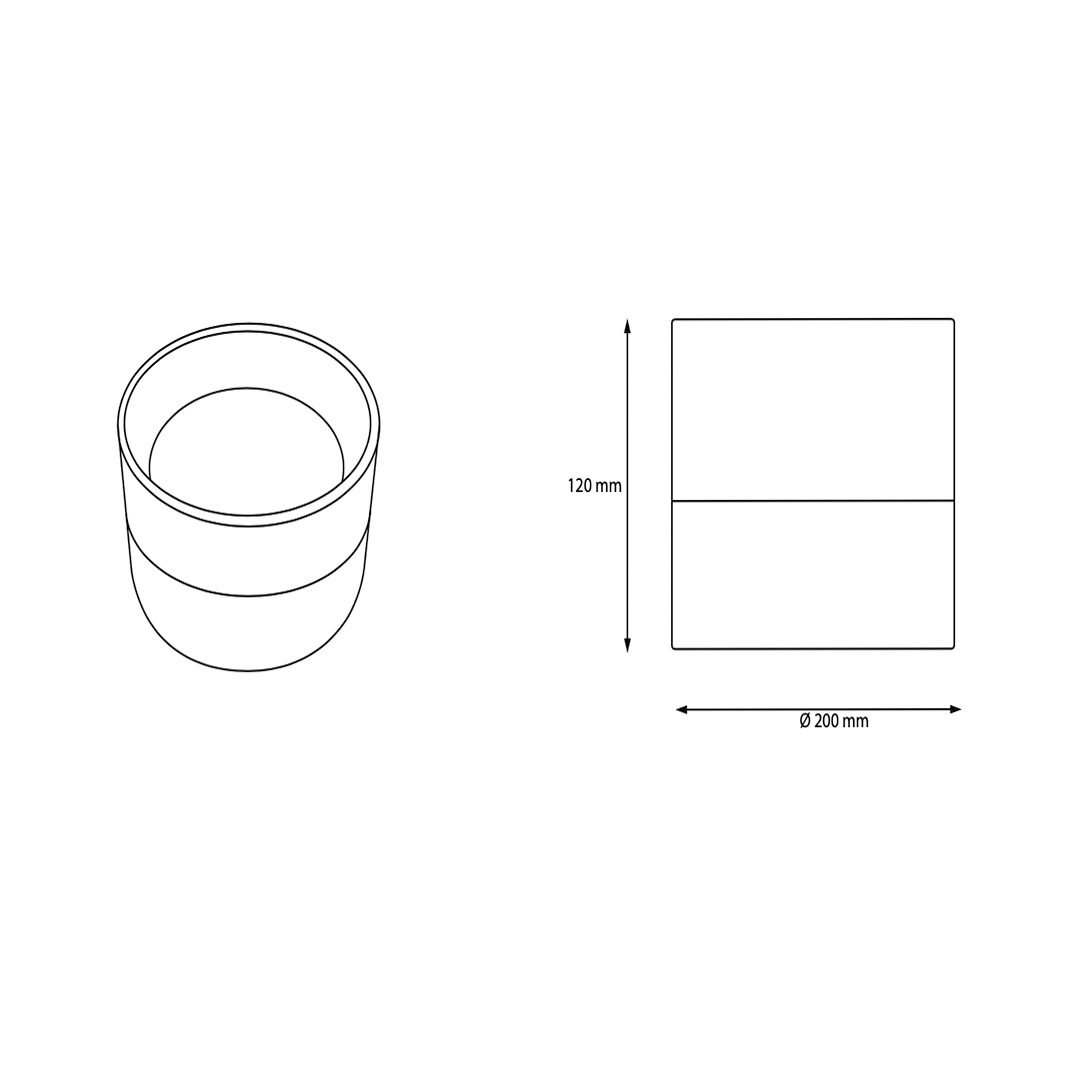

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
ARESSURFACE.10.200.N.4.100
10 W
4000 K
200 mm
1150 lm
ARESSURFACE.15.200.N.4.100
15 W
4000 K
200 mm
1725 lm
ARESSURFACE.21.200.N.4.100
21 W
4000 K
200 mm
2415 lm
