COSMO TRIO SQUARE
Product Description
Aluminum injection body
Tempered glass
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design
Reflector
Light distribution
DIRECT BEAM ANGLE
Versions
Documents

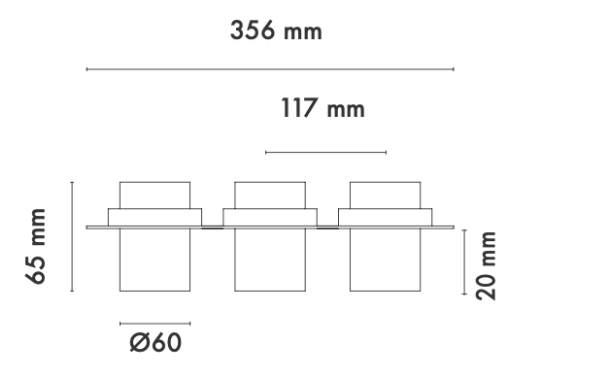

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CSMO3SQ.21.117x365.N.4.23
21 W
4000 K
117X365MM mm
2310 lm
CSMO3SQ.21.117x365.N.4.37
21 W
4000 K
117X365MM mm
2290 lm
CSMO3SQ.21.117x365.N.4.51
21 W
4000 K
117X365MM mm
2270 lm
CSMO3SQ.30.117x365.N.4.23
30 W
4000 K
117X365MM mm
3210 lm
CSMO3SQ.30.117x365.N.4.37
30 W
4000 K
117X365MM mm
3290 lm
CSMO3SQ.30.117x365.N.4.51
30 W
4000 K
117X365MM mm
3270 lm
