LOTA
Product Description
Aluminum injection body
Tempered glass
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
3X0,75 mm2 CABLE
Design
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents

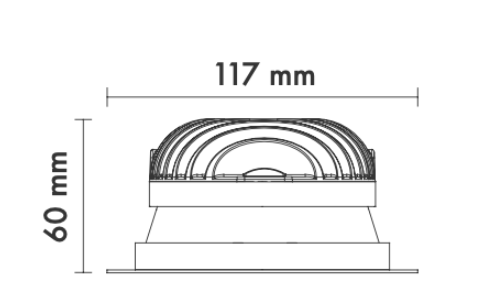

Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LOTA.7.117.N.4.20
7 W
4000 K
117X117 mm
770 lm
LOTA.7.117.N.4.47
7 W
4000 K
117X117 mm
750 lm
LOTA.10.117.N.4.20
10 W
4000 K
117X117 mm
1069 lm
LOTA.10.117.N.4.47
10 W
4000 K
117X117 mm
1050 lm
LOTA.13.117.N.4.20
13 W
4000 K
117X117 mm
1430 lm
LOTA.13.117.N.4.47
13 W
4000 K
117X117 mm
1410 lm
