OTIS
Product Description
DKP Metal Body and Aluminum
injection Heatsink
Tempered Glass or Frosted Glass
Constant current LED driver
Electrostatic powder coating paint
Optional body colors
ENEC Standards
Installation
RECESSED INSTALLATION IN THE CEILING DRIVER HOUSING IS SEPARATE FOR EASY INSTALLATION
Connection
DALI, DIM, DMX
Design

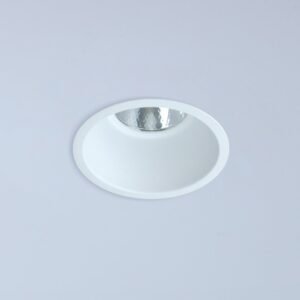

CIRCLE SHAPE FIXED DOWNLIGHT MADE OF ALUMINIUM IN WHITE COLOR AS STANDARD OPTION WITH PMMA DIFFUSOR
Reflector
Reflector of matt metallised aluminium in white color as standard
Light distribution
DIRECT BEAM ANGLE
Versions
Documents
Technical Drawings
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
OTIS.7.94.N.4.23
7 W
4000 K
94x94 mm
770 lm
OTIS.7.94.N.4.37
7 W
4000 K
94x94 mm
750 lm
OTIS.7.94.N.4.51
7 W
4000 K
94x94 mm
730 lm
OTIS.10.94.N.4.23
10 W
4000 K
94x94 mm
1070 lm
OTIS.10.94.N.4.37
10 W
4000 K
94x94 mm
1050 lm
OTIS.10.94.N.4.51
10 W
4000 K
90X110 mm
1030 lm
OTIS.13.94.N.4.23
13 W
4000 K
94x94 mm
1260 lm
OTIS.13.94.N.4.37
13 W
4000 K
94x94 mm
1240 lm
OTIS.13.94.N.4.51
13 W
4000 K
94x94 mm
1220 lm
