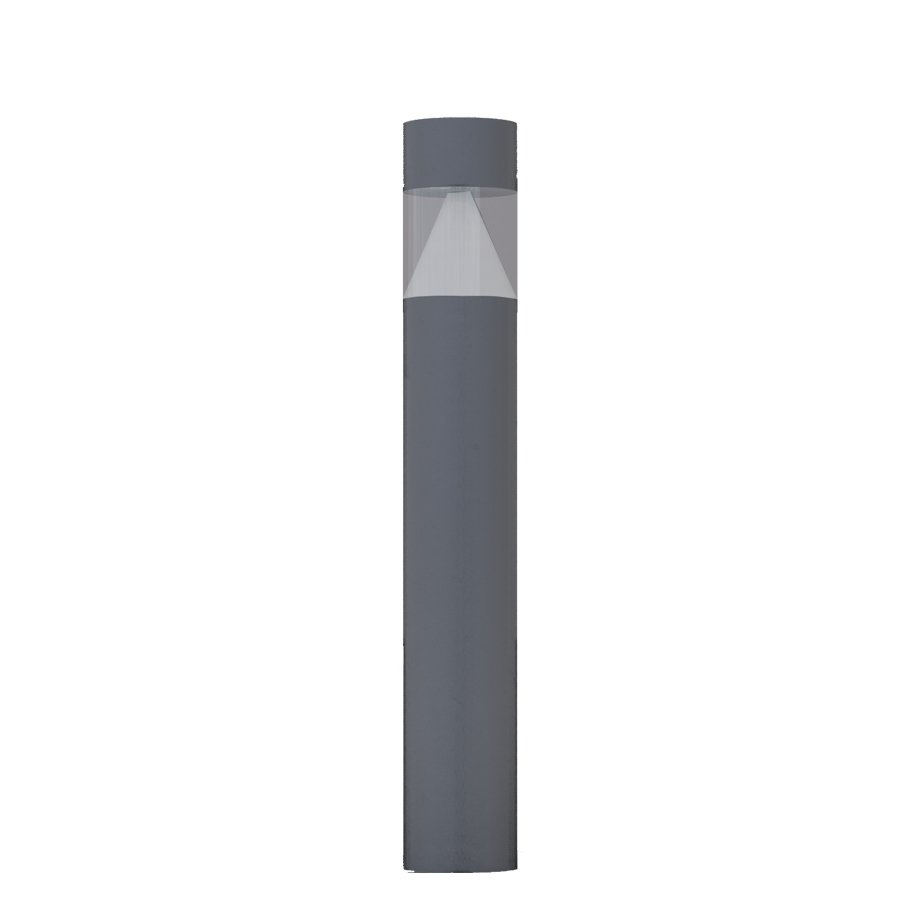

CALIFORNIA
Product Description
Understated and yet remarkably beautiful,
CALIFORNIA is a prime example of the immense
power of puristic design. Without unnecessary frills;
nothing distracts from the focus on the key
essentials: powerful, homogeneous light in a
perfectly flawless cylindrical form.
The housing and technical components have been
carefully selected to ensure economic efficiency and a
long service life for all products in the range. The high
quality is also reflected in the numerous benefits in
terms of installation, maintenance and operation with
IP66 and the “invisible” power supply via delicate steel
cables inside the diffuser cylinder.
Installation
Surface mounted
Connection
Design
Aluminium body, Electrostatic powder paint, Galvanized metal anchorage, High quality silicone gasket, High effciency LED lighting
Lenses
Light distribution
Specification
Versions
Documents

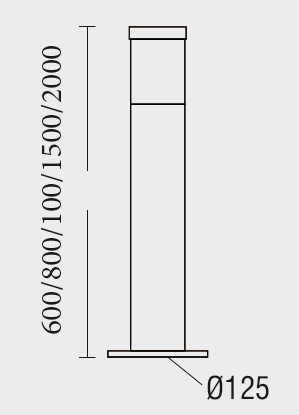

Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CALIFORNIA.8.600.AC.N.4.SYM.7016
8 W
4000 K
600 mm
1056 lm
CALIFORNIA.10.600.AC.N.4.SYM.7016
10 W
4000 K
600 mm
1320 lm
CALIFORNIA.15.800.AC.N.4.SYM.7016
15 W
4000 K
800 mm
1980 lm
CALIFORNIA.20.800.AC.N.4.SYM.7016
20 W
4000 K
800 mm
2640 lm
CALIFORNIA.25.1000.AC.N.4.SYM.7016
25 W
4000 K
1000 mm
3300 lm
CALIFORNIA.30.1000.AC.N.4.SYM.7016
30 W
4000 K
1000 mm
3960 lm
CALIFORNIA.25.1500.AC.N.4.SYM.7016
25 W
4000 K
1500 mm
3300 lm
CALIFORNIA.30.1500.AC.N.4.SYM.7016
30 W
4000 K
1500 mm
3960 lm
CALIFORNIA.35.2000.AC.N.4.SYM.7016
35 W
4000 K
2000 mm
4620 lm
CALIFORNIA.40.2000.AC.N.4.SYM.7016
40 W
4000 K
2000 mm
5280 lm
