CALIFORNIA WOOD
Product Description

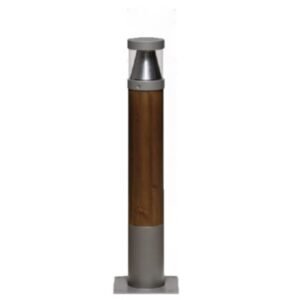

A simple and structural accent for modern exteriors. CALIFORNIA SQ Outdoor LED bollard provides soft atmospheric lighting to accentuate outdoor spaces and offer guidance along pathways.
Made of aluminum, this cylindrical erutxextends straight upward to allow its light to spill outward. This bollard is an iconic gothic design in a modern reinterpretation to LED sources with outstanding performance, designed to guarantee an high visual comfort, glare-free lighting with no light pollution.
Installation
hıgh effıcıency lıght , Galvanized metal anchorage LED with Life Span >100.000 Hours CCT tolerance within a 3 step MacAdams ellipse Corrosion Protection 5 Years Warranty Marine Coating (Optional) ENEC Certıfıed
Connection
ON/OFF
Design
Simple and structural foo modern designs , economıc and effıcıent , easy ınstallatıon , hıgh performance led , hıgh corrosıon resıstance.
Lenses
symmectrıcal
Light distribution
4000 K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
4000 K
Beam Angle:
Symmetrical
Control:
DALI, Manual control
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
CALIFORNIAW .10.100.AC.N.4.SYM.7016
10 W
4000 K
100 mm
800 lm
CALIFORNIAW .15.100.AC.N.4.SYM.7016
15 W
4000 K
100 mm
1200 lm
CALIFORNIAW .20.100.AC.N.4.SYM.7016
20 W
4000 K
100 mm
1600 lm
CALIFORNIAW .10.120.AC.N.4.SYM.7016
10 W
4000 K
120 mm
800 lm
CALIFORNIAW .15.120.AC.N.4.SYM.7016
15 W
4000 K
120 mm
1200 lm
CALIFORNIAW .20.120.AC.N.4.SYM.7016
20 W
4000 K
120 mm
1600 lm
