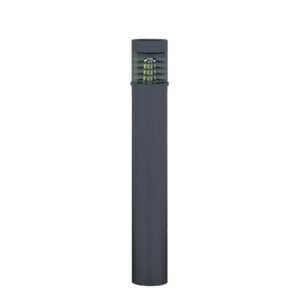

LUMINA
Product Description
Understated and yet remarkably beautiful, LUMINA
is a prime example of the immense power of puristic
design. Without unnecessary frills; nothing distracts
from the focus on the key essentials: powerful,
homogeneous light in a perfectly flawless cylindrical
form.
The housing and technical components have been
carefully selected to ensure economic efficiency and a
long service life for all products in the range. The high
quality is also reflected in the numerous benefits in
terms of installation, maintenance and operation with
IP 66 and the “invisible” with secret anchor.
Installation
Surface mounted
Connection
Design
Aluminium body, Electrostatic powder paint, High efficiency LED lighting, High quality silicone gasket
Lenses
Light distribution
Specification
Versions
Documents

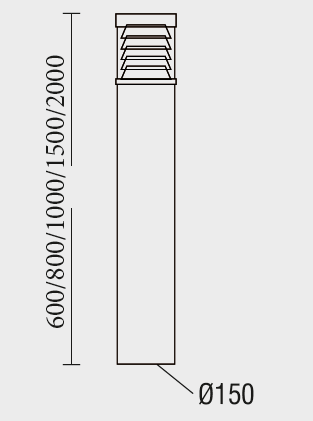

Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
LUMINA.8.600.AC.N.4.SYM.7016
8 W
4000 K
600 mm
1056 lm
LUMINA.10.600.AC.N.4.SYM.7016
10 W
4000 K
600 mm
1320 lm
LUMINA.15.800.AC.N.4.SYM.7016
15 W
4000 K
800 mm
1980 lm
LUMINA.20.800.AC.N.4.SYM.7016
20 W
4000 K
800 mm
2640 lm
LUMINA.25.1000.AC.N.4.SYM.7016
25 W
4000 K
1000 mm
3300 lm
LUMINA.30.1000.AC.N.4.SYM.7016
30 W
4000 K
1000 mm
3960 lm
LUMINA.25.1500.AC.N.4.SYM.7016
25 W
4000 K
1500 mm
3300 lm
LUMINA.30.1500.AC.N.4.SYM.7016
30 W
4000 K
1500 mm
3960 lm
LUMINA.35.2000.AC.N.4.SYM.7016
35 W
4000 K
2000 mm
4620 lm
LUMINA.40.2000.AC.N.4.SYM.7016
40 W
4000 K
2000 mm
5280 lm
