SIMPLEX
Product Description

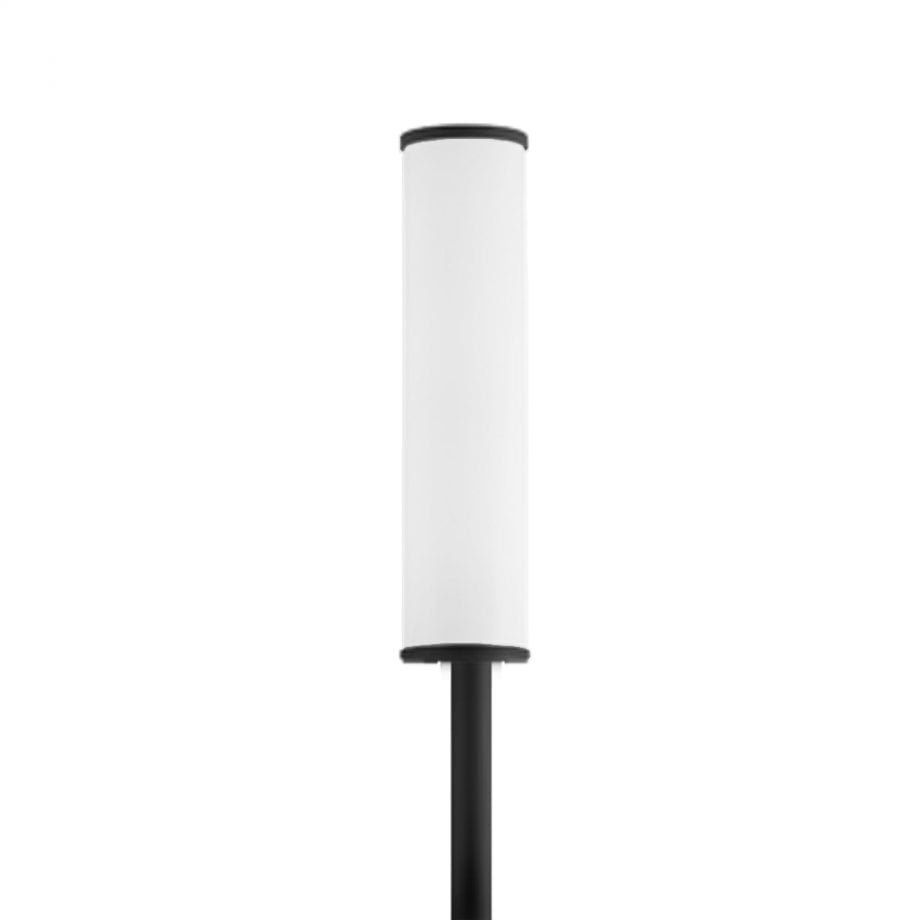

LED luminare for public lighting combining the
elegance and simplicity of its cylindrical shape
designed to guarantee the best performance.
Simplex produces different lighting effects depending
on the version of the screen. The increased diffusion
and homogeneity of light reduce the number of
installations, optimizing consumption and reducing
light pollution in urban areas. It is available in different
color temperatures and wattages to better meet the
needs of the lighting project.
Installation
Surface mounted
Connection
Design
Aluminium Body, Electrostatic powder paint, Galvanized metal anchorage, Aluminium PCB, High efficiency LED lighting,
Lenses
Light distribution
Specification

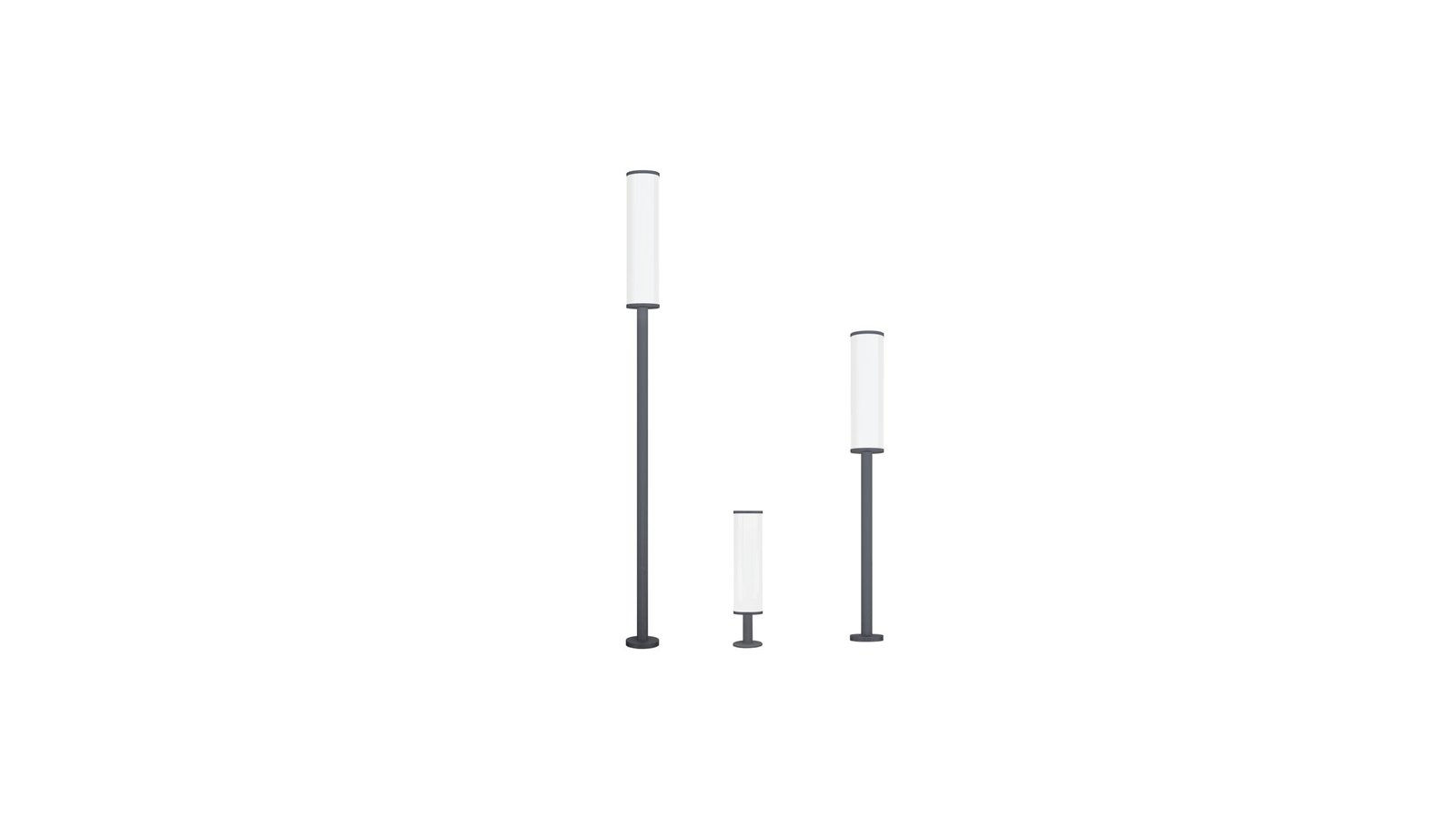

Versions
Documents

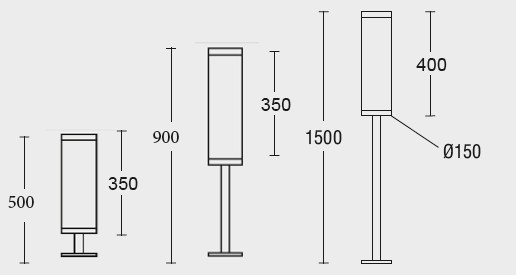

Technical Drawings
Specification
İnput Voltage:
100-305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2200, 2700, 3000, 4000, 5000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Symmetrical, Wide beam
Control:
DALI, Manual control, DMX
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
SIMPLEX.15.500.N.4
15 W
4000 K
500 mm
1980 lm
SIMPLEX.20.500.N.4
20 W
4000 K
500 mm
2640 lm
SIMPLEX.25.500.N.4
25 W
4000 K
500 mm
3300 lm
SIMPLEX.20.900.N.4
20 W
4000 K
900 mm
2640 lm
SIMPLEX.30.900.N.4
30 W
4000 K
900 mm
3960 lm
SIMPLEX.40.900.N.4
40 W
4000 K
900 mm
5280 lm
SIMPLEX.30.1500.N.4
30 W
4000 K
1500 mm
3960 lm
SIMPLEX.40.1500.N.4
40 W
4000 K
1500 mm
5280 lm
SIMPLEX.50.1500.N.4
50 W
4000 K
1500 mm
6600 lm
