ASTRO 4 HIGH BAY
Product Description
Highly engineered and manufactured for Outdoor areas. Astro 4 High Bay is 5 years warranty Floodlight made of Aluminium die cast Modular Housing ( Fixed and adjustable).
Available in High power options with High-output Led Chips in 6500K, 5000K, 4000K and 3000K options which can be customized upon request. The floodlight is using Premium IP67 protected lenses. All the IES files, photometric reports and simulations are provided upon request. Thanks to Adjustable brackets, it can be easily mounted anywhere and only Plug&Play.
Installation
High operational temperature, Can be easily integrated to many designs, Economic and efficient, Easy installation, High performance LED, High corrosion resistance, High lumen output, Adjustable brackets
18226
Connection
DALI, DIM, DMX
Design
Aluminium Injection Body, Electrostatic Powder Paint, Optional RAL Colors, Heat & Impact Resistant Extra Clear 5mm Tempered Glass, Aluminium PCB, LED with Life Span >60.000 Hours, CCT tolerance within a 3 step MacAdams ellipse, Corrosion Protection (Optional), 5 Years Warranty, Marine Coating (Optional)
Lenses
PMMA Lenses
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents

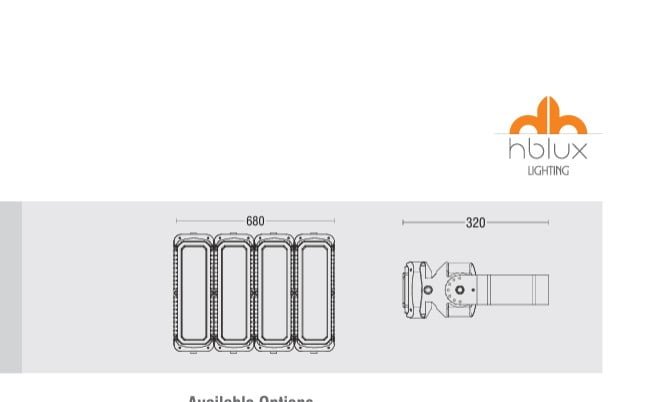

Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
67
Impact Resistance:
10
CCT:
2700, 3000, 3500, 4000, 4500, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Wide beam
Control:
DALI, Daylight control, Lux threshold, Manual control, Night dimming, Phase-pulse, Presence/absence dimming, Trailing Edge, Wireless communication, DMX, ON/OFF, DIMMABLE
