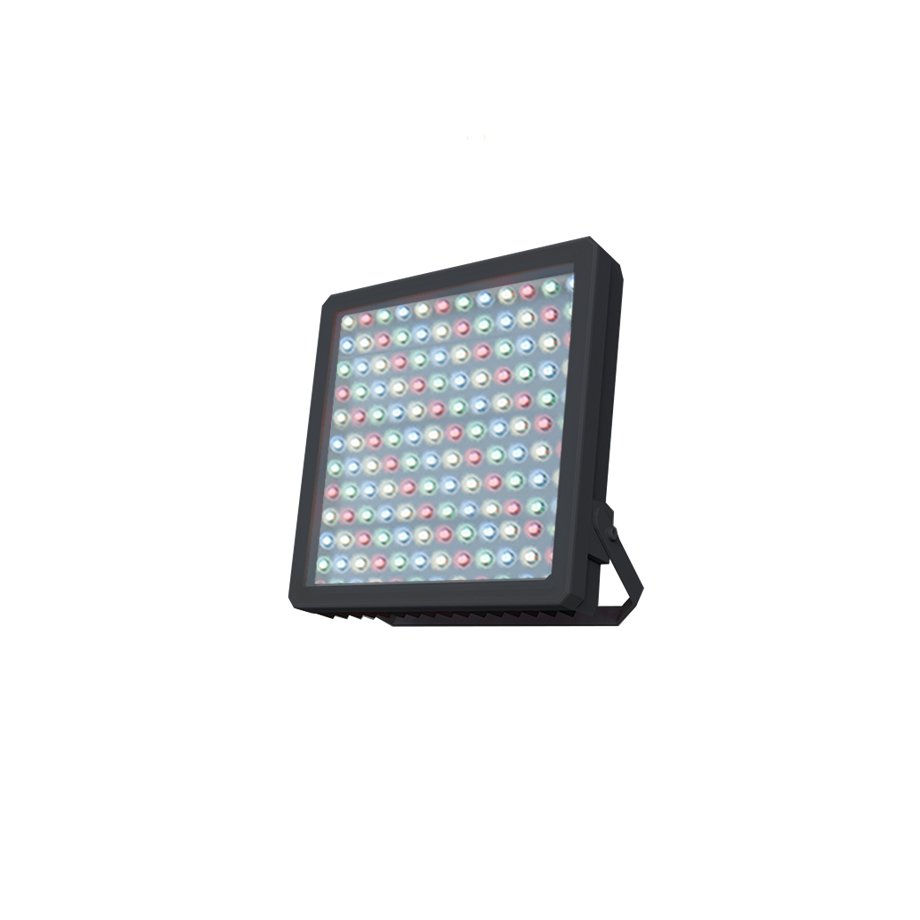

RADON SQ RGB-W
Product Description
High Power Modular Projector stands out with its modern and innovative design specially designed to illuminate ports, airports, docks, etc. This projector has an optimal quality for the highest levels of competition, it also allows many other applications such as the lighting of the areas that want to provide special lighting as would be the case in sports stadiums.
Large luminous flux, high optical efficiency, simple installation with high reliability and flexibility. Its power as well as its high brightness make the RADON LED Projector perfect for Stadium applications.
110V-305V
Installation
SURFACE MOUNTED
18559
Connection
30cm- 3x1.5 mm2 Cable
Design
MODULAR RECTAGULAR SHAPE FLOODLIGHT MADE OF ALUMINIUM INJECTION DIE-CAST IN BLACK COLOR AS STANDARD OPTION WITH PMMA LENSES AND FRONT SIDE ALUMINIUM INJECTION DIE-CAST WITH 5mm TEMPERED GLASS
Lenses
PMMA MULTI LENSES
Light distribution
DIRECT BEAM ANGLE
Specification
Versions
Documents

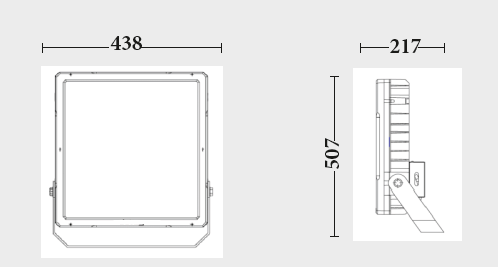

Technical Drawings
Specification
İnput Voltage:
305 V
IP Rate:
66
Impact Resistance:
09
CCT:
2700, 3000, 4000, 6500 K
Beam Angle:
Asymmetrical, Medium beam, Narrow beam, Wide beam
Control:
DALI, DMX, ON/OFF, DIMMABLE
