SUBMURUS
Product Description

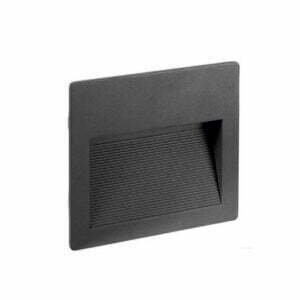

A simple and structural accent for modern exteriors. SUBMURUS Outdoor LED recessed Wall light provides soft atmospheric lighting to accentuate outdoor spaces and offer guidance along pathways.
Made of aluminum, this rectangular fixture extends straight upward to allow its light to spill outward.
This luminaire is an iconic design in a modern reinterpretation to LED sources with outstanding performance, designed to guarantee an high visual comfort, glare-free lighting with no light pollution.
Installation
Simple and structural for modern designs, Economic and efficient, Easy installation, High performance LED, High corrosion resistance
9418
Connection
DALI, DIM, DMX
Design
Aluminium Body, Electrostatic Powder Paint, Optional RAL Colors, PMMA Diffuser, Aluminium PCB, LED with Life Span >100.000 Hours, CCT tolerance within a 3 step MacAdams ellipse, Corrosion Protection (Optional), 5 Years Warranty, Marine Coating (Optional)
Lenses
PMMA Lenses
Light distribution
2200K, 2700K, 3000K, 5000K, 6500K
Specification
Versions
Documents
Technical Drawings
Specification
İnput Voltage:
220 V
IP Rate:
65
Impact Resistance:
09
CCT:
2700, 3000, 3500, 4000, 4500, 6500 K
Beam Angle:
Asymmetrical, Narrow beam, Wide beam
Control:
DALI, Daylight control, Lux threshold, Manual control, Night dimming, Phase-pulse, Presence/absence dimming, Trailing Edge, Wireless communication, DMX, ON/OFF, DIMMABLE
Version Product Code
Version Power
Version CCT
Version Dimensions
Version Lumen
SUBMURUS.3.AC.N.4.30.7016
3 W
4000 K
195X195X85 mm
225 lm
SUBMURUS.6.AC.N.4.30.7016
6 W
4000 K
195X195X85 mm
450 lm
